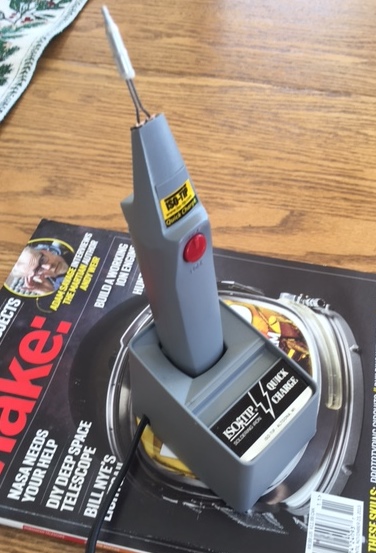

I recently had the opportunity to try out a new ISO-TIP 7700 soldering iron. This is a rechargeable soldering iron without a lot of extra features but it is plenty capable for small soldering tasks. Here’s a few specs from the ISO-TIP web site:
– Fully recharges in 3.5 to 4.0 hours
– Partially charged battery to full capacity in one to two hours
– Up to 125 soldering joints per charge during continuous use
– Withstands high-rate charging without damage

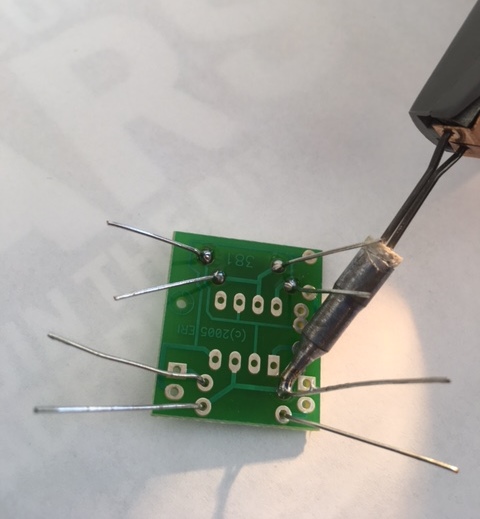

I’ve been on the lookout for a simple construction project for our local radio club and had acquired a Blinkey Kit from rainbowkits.com. This is a simple two-LED flasher circuit using the venerable 555 timer. I decided it was also a great little project to try out the 7700 soldering iron. Assembly was very simple, requiring 24 solder joints. The iron did a find job of heating up those joints. It takes about 2 to 3 seconds for the tip to heat up, plenty fast for my needs.
Here’s a short video of the circuit blinking away, proving that I can solder together a simple circuit: Video of circuit blinking Yes, the circuit did work the first time.
The soldering iron performed well, no complaints at all. With only 24 joints to solder, I did not stress the capacity of the iron (which is rated at 125 joints). This is a relatively light duty iron, so I wondered how well it would do against a physically large soldering task. Soldering a PL-259 coaxial connector is a common task for amateur radio work, one that takes a lot of heat. I was surprised to find that the 7700 was able to heat up the center pin of the connector quite nicely. I was not surprised that it struggled with heating the body of the connector. I think that is asking too much of this size soldering iron. The only nit I would pick is I’d really like a LED power/charging indicator. I am always nervous about whether a device is plugged in, getting power, really charging and a simple indicator would solve that. But that is a very minor issue and probably speaks more about my personal paranoia than the soldering iron.
This iron has quickly become my “Go To” tool for quick soldering jobs. I don’t do major kit assembly and other big soldering tasks. I just need a little soldering here and there and this baby is always in the charging stand ready to go. To order the soldering iron (and see other products), visit http://www.iso-tip.com/products-page/
Use discount code YT1510 to get 10% off store wide.
73, Bob K0NR
Disclosure: this soldering iron was provided to me by ISO-TIP at no charge.
You are probably familiar with the Ground Fault Circuit Interrupter (GFCI), also called Ground Fault Interrupter (GFI), Residual-Current Device (RCD) and a few other names. While doing some electrical work for a family member, I discovered Arc Fault Circuit Interrupters (AFCIs) in the breaker box. Having a genuine Electrical Engineering degree (two, actually), I’d like to believe that I am reasonably up to date on basic house wiring. But somehow AFCIs had escaped my attention, even though they started appearing in the National Electric Code over 10 years ago.
A bit of searching on the internet revealed that these newfangled devices are intended to detect arc faults that are below the trip level of a normal circuit breaker. Think in terms of a frayed extension cord that arcs over, creating a fire hazard, but not exceeding the 15 ampere rating of a typical house circuit. As usual, the Wikipedia entry is a good place to start. AFCIs detect arcs by monitoring the current behavior throughout the 60 Hz cycle. There are characteristics in the waveform that indicate an arc condition exists, causing the AFCI to disconnect the circuit. This article goes into more technical detail if you are interested:
Just like GFIs, AFCIs are available for installation in the main breaker panel and for installation at the electrical outlet. The diagram below shows the block diagram of a typical single-phase AFCI. This is not your old school circuit breaker but a complex system that performs both arc and ground fault detection. As already mentioned, the arc detection is performed by sensing the current behavior. The ground fault detection senses the difference between the current leaving and returning to the device. If there is a significant mismatch between the two currents, a ground fault has occurred.
This post is just a quick introduction to AFCIs, with a USA perspective. Your local building codes are now or will soon be requiring AFCIs on new construction, so you’ll probably encounter them sooner or later. The National Electrical Manufacturers Association has a website with additional information: www.afcisafety.org.
Last week, I had lunch with an old friend, Bdale Garbee (KB0G). Bdale and I had both worked at HP for a number of years and we have been involved in some common ham radio clubs and activities. I followed the test and measurement path with Agilent Technologies when that company was formed, while Bdale stayed with the HP computer business. He is a recognized industry expert in Unix, Linux and all things open source. It is always cool to catch up with him and find out what he has been doing. He recently took early retirement from HP…I am not sure what “retirement” means for Bdale but its not playing shuffleboard at the retirement home!
Coincidentally, a few days later, I came across this video from HamRadioNow of Bdale talking at the ARRL/TAPR Digital Communications Conference. In this talk, Bdale discusses the general theme of making stuff and the satisfaction that is derived from that activity. It is about an hour long so grab a cup of your favorite beverage and take a seat.
By the way, check out the other HamRadioNow videos, especially the videos of the DCC technical talks. Good stuff!
I was writing an electronics article today and started to do some circuit analysis by hand. It was a pretty simple circuit so I knew I could crank out the circuit analysis on paper but I started to think maybe there was a better way. I poked around the web and came across CircuitLab.com, a free, online circuit simulator.
As I gave it a try, I was amazed at how easy it was to use. I just started doing some simple drag-and-drop from my browser and the circuit quickly took shape. A few minutes later, I had my first analysis running and I started playing “what if” games with the circuit parameters.
OK, I’ll admit that the circuit I created was pretty simple but still, I am impressed. Oh, and did I mention that its free? If you have need for circuit diagrams and simulation, check out CircuitLab.com.
